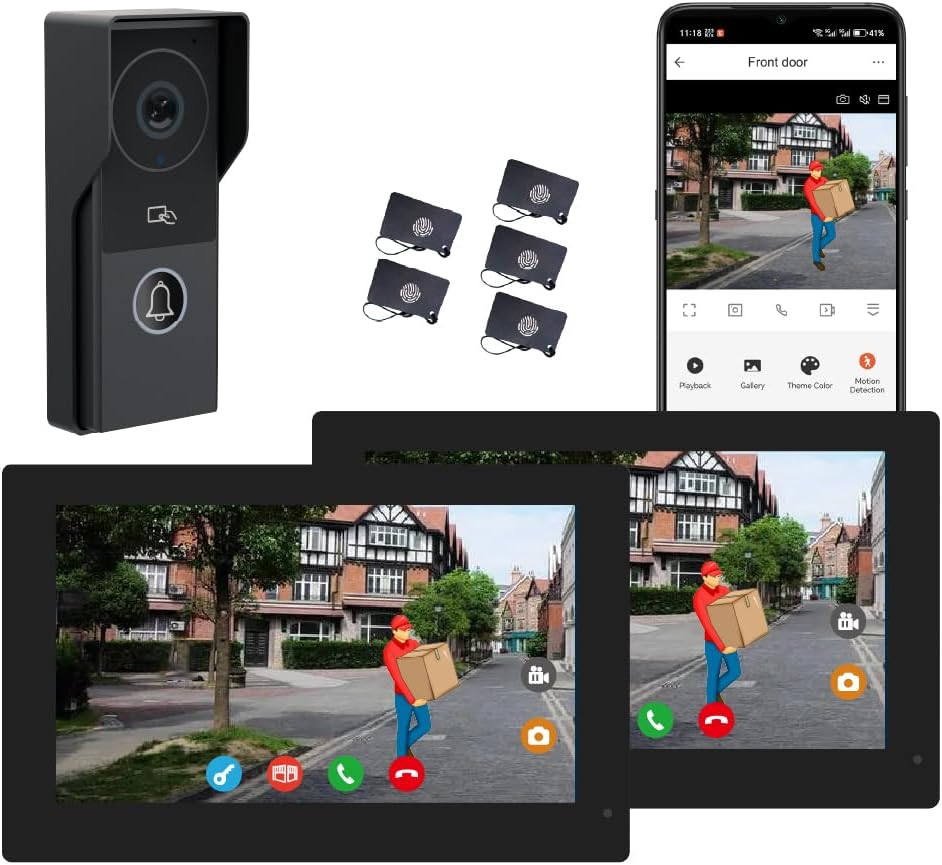

2pin-Wired 2MP HD Indoor 7″ WiFi Monitor Smart Home Video Doorbell Intercom System, Remote APP Phone Unlock Video Record Motion Detect 2-Way Talk IR Camera Door Bell 1x doorbell + 2 x 7in Monitor

Features
Indoor Monitor
Screen: 7” or 10.1” 1024 x 600 IPS touchscreen Memory: Micro SD card class 10 up to 256GB
Video decoding: H.264
WiFi: 2.4 GHz WiFi IEEE 8111 b/g/n
Current consumption: 150mA, Power consumption: 3.5W
7inch monitor dimensions: 119 (h) x 188 (w) x 19.5 (d) mm
10.1inch monitor dimensions: 158 (h) x 242(w) x 18.5 (d) mm
Function: Take photo, video, unlock gate and door, human detection, weather display
Call: Monitor can talk to another monitor
Playback: Video recording after the call or human detection Finish: Black plastic or silver plastic
Languages: English, Deutsch, Español, Français, Italiano,Nederlands, Polski, Português, Русский, Türkçe,

Intercom panel
Image Senson: CMOS colour sensor 2Mega pixels
Viewing angle：130°H, 75°V, 155° (Diagonal)
Day & Night： IR CUT no color deviation (4 IR LEDs，max. 6m) Current consumption: 220mA，Power consumption: 5.5W
Camera with wide dynamic range
Camera distortion correction to avoid video stretching and bending Human detection and setting Motion zone
Unlock: Twin controls for the lock and gate
RFID badges: Max 100pcs RFID badges(13.56MHz)
IP Grade: IP44 with shield cover
Finish: Black aluminium and plastic or silver aluminium and plastic Operating temperature: -30°C / +70°C
Dimensions: 145(h) x 92 (w) x 39 (d) mm

Connection and Function
Connection：2 wire no polarity, capable with 4 wire, digital signal
Power supply：1 Intercom panel and 2 monitors connected to one,24V 1A power supply
Onvif cameras: Connect up to 24 Onvif cameras in the same LAN Strike plate control: 12V, 1.1A, 1.5S
Gate control: breaking capacity: 12 V/2 A max.

APP
Master indoor monitor connects to “Tuya Smart” or “Smart Life” App
Function: 21 App users connect to the APP, users can talk to visitors
anytime and anywhere, take photo or video, monitor,
unlock door and gate, cloud storage
Playback: Push photo and video to APP when motion detection or call

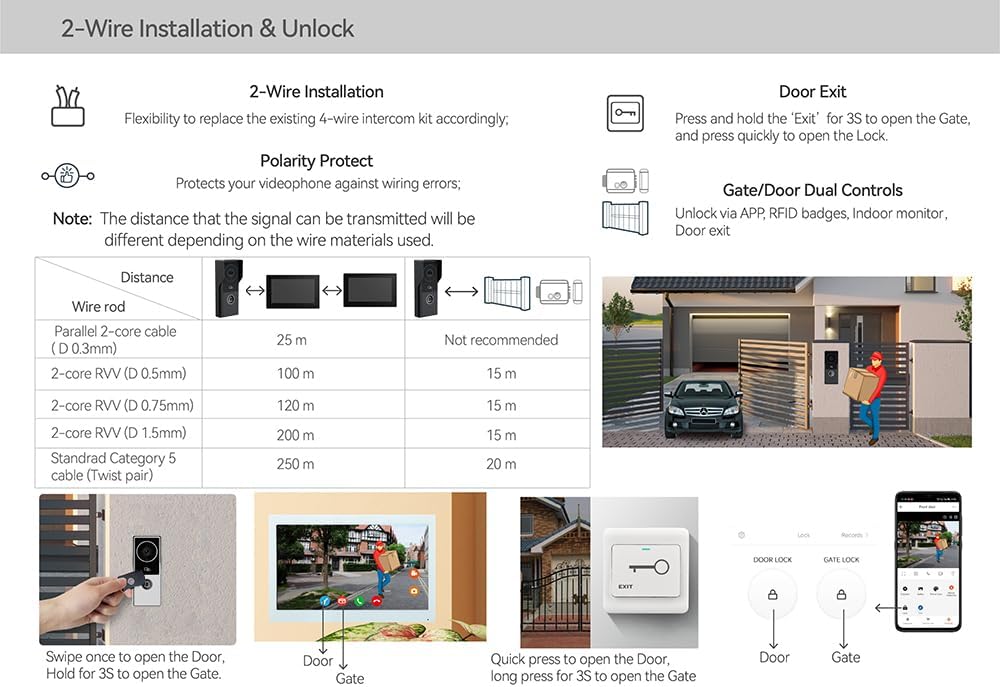

【2-pin Wired & Connection Distance】This wifi video intercom system does not mean that it does not need any cables.The indoor monitor supports the wireless wifi network, but the indoor monitor and doorbell are wired, need to connect 2 core cable.The indoor monitor and doorbell connection distance based on cable thick, such as: 2-core Cable Dia 0.5mm can up to 100m, 2-core Cable Dia 0.75mm can up to 120m, 2-core Cable Dia 1.5mm can up to 150m. Which will make the wired doorbell system works more stably.
【1080P 2MP HD Camera&Touch Screen Monitor】7/10-inch TFT touch monitor with slim design, support APP “Tuya Smart” or “Smart Life” wireless WiFi, intercom hand-free.The wifi video doorbell intercom system has 1080P HD camera, 155° wide angle, with rain cover build-in speakers and microphone, built-in infrared sensor, IR night vision, rainproof, dustproof and anti-vandalism.
【Smart Motion detection & Unlock & Auto Recording】This doorbell has multiple unlock methods: by APP or screen monitor.It’s very convenient and flexible.When triggered motion detection, the camera will auto snapshot or video recording and save in the Micro SD of monitor(SD card must be installed,otherwise cannot snapshot and recording ).When an object is moving before doorbell, the mobile phone can receive an alarm prompt in real-time. You can check the recording via smartphone anytime.
【Real Time Monitoring And Never Miss A Visitor】The wifi video doorbell intercom system with the latest IP technology, when visitors press the doorbell, your phone will receive the APP call. You can see, hear and talk to someone at your door , even unlock remotely via your smartphone in anywhere. You never miss a delivery or keep guests waiting. Can be used in apartments, villas, hotels, offices, public buildings. App is “Tuya Smart” or “Smart Life” .
【Easy To Setup】Surface mounting, easy 2-pin wired setup system, indoor monitor and outdoor doorbell wired extension cable connection, The monitor support WIFI network, easily setup in APP. Support connect up to 1 doorbell and 2 indoor monitors. (ONLY support 2.4G WiFi router), After installing this doorbell system, you can open the door anywhere by app. It can connect all 24V electronic locks.(Lock & SD card not include).
